1、 Model meaning

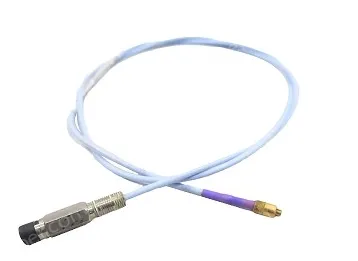

330130:3300 XL 8mm series extension cable
080: Cable length 8.0 meters
01: Type of connector (standard 2-pin/3-pin gold-plated connector, compatible with 3300 XL probe/preamplifier)
05: Explosion proof certification (ATEX/IECEx, applicable to Zone 1 hazardous areas)
2、 Core electrical parameters
System adaptation: Fully compatible with 3300 XL 8mm probe (such as 330103) and preamplifier (such as 330180), no calibration required
Working voltage: -24 VDC (system power supply)
System sensitivity: Standard 7.87 mV/μ m (200 mV/mil)
Frequency response: 0~10 kHz (to meet the vibration monitoring of rotating machinery)
Insulation resistance:>100 M Ω (25 ℃)
Joint characteristics: gold-plated contacts, low contact resistance, corrosion resistance, vibration resistance
3、 Mechanical and environmental parameters
Cable structure: double-layer shielding (tin plated copper mesh+aluminum foil), resistant to electromagnetic interference; Fluoroplastic/Teflon insulation, oil and temperature resistant
Protection level: IP67 (sealed at the joint)
Working temperature: -50 ℃~+177 ℃ (wide temperature type, suitable for extreme industrial environments)
Bending radius: minimum 75 mm (convenient for on-site wiring)
Weight: Approximately 0.4 kg (8 meters)
Explosion proof certification: ATEX/IECEx, suitable for Zone 1 explosive gas environments
4、 Functions and Applications
Used for 3300 XL 8mm eddy current sensor system to achieve signal transmission between probe and preamplifier
Typical applications: Radial vibration, axial displacement, key phase, and speed monitoring of rotating equipment such as steam turbines, compressors, motors, and pumps
Support FluidLoc leak proof structure (optional) to prevent medium leakage along the inside of the cable
