Basic Information

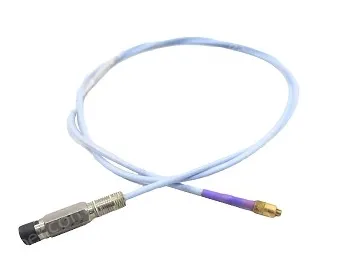

Product model: 330130-045-03-05.
Series: 3300 XL.
Product type: 8mm standard extension cable.
Manufacturer: Bently Nevada (a subsidiary of Baker Hughes).
Adaptation system: 3300 XL 8mm eddy current sensor system, compatible with 3300 XL probes and proximitor sensors, supports complete interchangeability of probes, extension cables, and proximitor sensors, without the need for separate calibration.
Meaning of model code
330130: 3300 XL standard extension cable.
045: The cable length is 4.5 meters (14.8 feet).
03: Armored cable with connector protection device.
05: Certified for hazardous areas such as ATEX/IECEx.
Core electrical parameters
Impedance: 75Ω (typical value), compatible with system signal transmission characteristics.
Capacitance: Approximately 69.9pF per meter (typical value), reducing signal attenuation and interference.
Core configuration: Three coaxial cables, FEP insulation, ensuring stable signal transmission and strong resistance to electromagnetic interference.
Physical and environmental parameters
Length: 4.5 meters (14.8 feet), meeting the installation distance requirements of most industrial sites.
Operating temperature: Standard temperature range -51°C to +177°C, suitable for complex industrial conditions.
Storage temperature: -51°C to +260°C (with extended temperature range cable).
Minimum bending radius: 25.4mm (1.0 inch), facilitating wiring and installation.
Weight: approximately 34g/m, with a single 4.5-meter cable weighing about 0.153kg, making it lightweight and easy to install.
Connection method: Utilizing the standard ClickLoc connector, the connection is secure and boasts a tensile strength of 330N (75lbf), effectively preventing cable detachment.
Performance and application
Signal transmission: Capable of transmitting static (position) and dynamic (vibration) measurement signals, with a frequency response of 0-10kHz, suitable for measuring axial displacement, rotational speed, key phase, and other related parameters.
System compatibility: compatible with 3300 XL proximitor, with a maximum field wiring length of up to 305 meters from the proximitor to the monitor, suitable for long-distance signal transmission scenarios.
Application scenario: Suitable for vibration and displacement measurement of sliding bearing machinery, as well as key phase and speed measurement, compliant with API 670 standards, and can be used for condition monitoring of large rotating machinery in petrochemical, power, metallurgical, and other industries.
